Operated by:
Borusan Lojistik Dağitim Depolama ve Tic. A.S. www.borusanlojistik.com
Address:
Borusan Lojistik Limani, Hisar Mah. Gemsaz Mevkii 8 km. 16601 Gemlik - Bursa
Telephone:
+90.224.519 01 50 - 272 30 00
P.I.C.:
Mr. Kaan GURGENÇ, Mr. Özgur SOY
E-Mail:
osoy@borusan.com ,
borusanlimani@borusan.com
Main Office Phone:
+90.216.571 50 00
Main Office Fax:
+90.216.445 77 03
Location:
40 25' 12" N - 29 05' 18 E
Borusan pier offer its services to a wide range of clientele including container business.
Borusan Port leads the sector with an annual 5,000.000 tons general cargo + 400,000 TEU containers + 250,000 cars handling capacity.
Unloading rates run as high as 200 tons per hour in terms of rolled steel. The port has an exemplary record for highly qualified and
damage-free handling of all kinds of general cargo. Enjoying the regulatory benefits of its A-type general antrepot status,
Borusan Port manages all "port, terminal and land transportation" work processes in an integrated manner, and saves customers
time and money with value added services including L/S/D packaging, labeling, assembly and disassembly. Customers also have
access to 3D cargo tracking in the field through the Borlos - JMS System.
General cargo loading, unloading
Borusan Port handles ships with remarkable speed and efficiency,
boasting a current rate of 30 containers per hour. Stock area and wharf
operations are planned and managed coordinatively.
In addition to port services, Borusan Lojistik also proffers a
container delivery-at-the-door service. Once your imported consignments
reach the port, and are transferred from the wharf to the terminal, Borusan
can unload the goods and deliver them without the empty container having to
leave the port; or bring you the container with its load. The entire process is
organized and carried out by Borusan Lojistik to offer the customers the comfort of
receiving each consignment hassle-free and just on time.
Container loading, unloading, shifting
Container packing, emptying
Reefer container port services
Container securing
Container terminal services
Borusan Port provides a complete range of Ro-Ro and car parking services,
including stevedoring and car washing at the nearly 3.500 car capacity parking area within the port.
The port has an established average loading-unloading rate of 110 cars per hour,
far above sector averages. The high speed of port services offers significant
advantages to customers in terms of hourly tarrying costs as well as ship operations.
Borlos System enables on line monitoring of the cars’ progress through RF terminals in the field.
Pure Car Carrier-Specialized Vehicle Carriers and Ro-Ro ship port services
Parking space services for imported and exported vehicles
Car washing and stevedoring services on the port premises
Borlos (Borusan Port Operation System) is seamlessly integrated with SAP, the Borlos
software manages our Port Services. Borlos is compatible with all other operating systems and
sub-technologies. The software enables systemic live monitoring and reporting of all operations.
BOPSNET (Borusan Port Service Network): All container processes are planned, monitored and reported
online by the BOPSNET software which developed specifically for container services. BOPSNET has
contributed significantly to the efficiency and speed of the container processes at Borusan Port.
It also allows customers to place orders and track developments over the internet.
Pilotage and towage:
+90.224.524 88 31
Equipped with 4 mobile cranes SWL 25, 20, 20, 10 T (possibility to rent more power fulls),
6 forklifts SWL 25, 15, 15, 6, 4, 3T, 3 terbergs/110 T and 4 spreaders / 20 feet.
Storage Area:
280,000 SQM INCLUDING 80,000 SQM CUSTOM BONDED AREA FOR CONTAINERS AND GENERAL CARGOES.
Total wharf length 1,400 m
Large feeder container ships handling up to 10,000 TEU
Container handling up to 17 rows
Maximum lifting capacity 140 ton
General Cargo Bonded Area Capacity
Covered Area 12.300 sq.m / 77.735 m.ton
Open Area 7.700 sq.m / 20.000 m.ton
General Cargo Unbonded Area Capacity
Covered Area 5.000 sq.m / 25.000 m.ton
Bonded Area 33.247 sq.m / 4.000 teu
Unbonded Area 21.300 sq.m / 1.866 teu
Bonded Area 23.000 sq.m / 1.900 vehicles
Unbonded Area 17.000 sq.m / 1.400 vehicles
Bollards :
6 bollards each side.
Liquid Waste Removal:
Available
F.W. Bunker and provisions:
Available through suppliers
Shifts:
7 days / 24 hours
Steel Pipes (loading):
750
Steel Coils (dis.):
1500-2000
Steel Plates (load):
400-500
Aliminium / zinc (disc) :
400-600
Container (by ship gear)20 ft:
10 pcs/hour/gang
Cargoes unaccepted :
Logs, liquids, cargoes in bulk
ANCHORAGE AREA:
40 26' 40" N - 29 07' 12" E

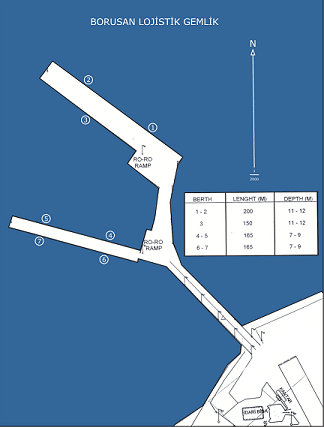

LOA RESTRICTIONS :
NO.1+2 : 200 M, 3: 150M, 4+5: 165 M , 6+7:165M
PFSO:
Mr. Uygun DEGIRMENCI Phn +90.224.519 01 50 Cell Phn +90.533.737 90 79
Statement No.:
0316044 (0916044)
On the southern shore of the Gulf of GEMLIK. The new and main general cargo port on the gulf.The port is connected to the hinterland by high standart roads.
Operated by:
Gemlik Port and Warehousing Administration Co.Inc. www.gemport.com.tr
Adress:
Kocaçukur Mevkii, POB.101 16600 Gemlik - Bursa
Phone/Fax:
0316044 (0916044)
Fax:
+90.224.524 88 30 & 37
E-Mail:
hakki.tas@gemport.com.tr (G. Mng.) , gemport@gemport.com.tr
Location:
40 25' N - 29 07' E
Pilotage:
Compulsory. Pilot service carry out by GEMPORT. Three tug boats (2x1731HP) (1x2000 HP) and one pilot boat are available. 24 hrs and 4 hrs notices should be given through agent.
Radio Frequency Information :
VHF channel 16, 71 (calling)
Tides:
Depending on the winds, the rise of tide is 0.35m.
Maximum Depth/LOA/DWT :
12m./230m./50.000 DWT
Accomodation:
Naturally Protected
Cranes :
Discharging rates:
a) Total Area : 700,000 m²
b) Customs Bonded : 255,000 m²
Storage:
c) Reefer Container Plug : 128 Plug
d) Empty Container Depot : 65,000 m²
e) Imco Container S. Area : 3,000 m²
Reefer Plugs :
64, extendable up to 256
PRINCIPAL IMPORT AND EXPORT GOODS:
Imports:
Steel roll, Iron products, Raw materials for textile and local industry, Automobile machinary parts, Urea, Paper roll, Coal, Logs, Iron scrab and fresh fruite.
Exports: Cotton yarn, Tobacco, Car, Textile, Mine and Minerals, Steel, Pipes, Ceramic products, Foodstuf, Fresh fruite and Vegetable.
Ship Repair:
Minor repairs can be effected.
Facilities:
An oily water purification systems available at the capacity of 4.500 cbm/year. Two electronic weight bridge of 100 tons capacity. Fresh water, telephone and medical facilities. 64 pcs x 380 v electric plugs for reefer containers
Working Hours:
24 hour service is available with excellent lighting system.
Shifts:
0800-1600/1600-2400/0000-0800 or 0800-2000/2000-0800
Garbage Remowall
Compulsory. Provided by Gemport daily.
Garbage
Compulsory, carried out by Port Management daily.
Anchorage Area :
40 26 40 N,29 07 12 E
LOA Restrictions

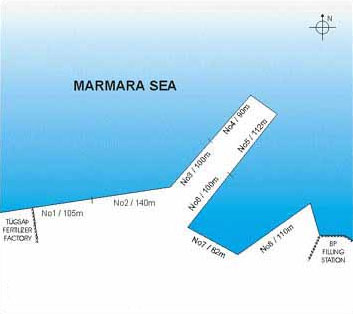

PIERS NO.1+2 : 241 M; 3+4 : 190 M ; 5+6 : 221 M ;7: 81 M ; 9 : 110 M
Investiments
The current finger pier will be expanded 95 meters and after having completed second stage there will be a linear berth of 413 meters on which SSG cranes shall be operated.
The total length of the berths will reach up to 934 meters when the project is completed.
PFSO:
Mr. Engin DALKILIÇ Phn +90.224.524 88 31 ext.206 Fax +90.224.524 88 30 Cell Phn +90.554.789 49 31 engin.dalkilic@gemport.com.tr ,
Mrs. Seycan SEVINÇLER ext no.219 Cell Phn +90.555.491 61 59 seycan.sevincler@gemport.com.tr
Statement No.:
0316043 (0916043)
Operated by:
Gemlik Gübre Fabrikaları A.S. - A member of Yildirim Holding Inc. http://www.gemlikgubre.com.tr
Location :
40 25 2"N, 29 05' 5"E, six miles off Gemlik. Between Borusan Port and Gemport. Istanbul Airpot is 157 km far by ferry or 270 km by car & 40 km fm Bursa Airport.
P.I.C.:
Ahmet Sarıkaya, Etüd Planlama Müd.
Fax:
+90.224.524 85 14/15
Cargo Handled:
Fertilizers, Ammonia, Phosphate

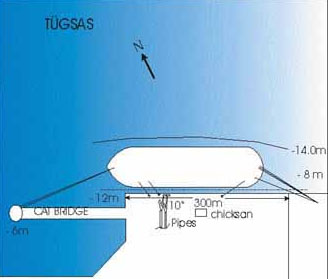

LOA:
300 m. but only 225 m. available for along side. Last 75 m.reserved for inland vessels.
Drafts:
0316043 (0916043)
Pilotage & Tugging :
Compulsory. 1 tug over 2,000 GT, 2 tugs over 5,000 GT
Berthing:
No berthing at nightdark. Portside alongside. Gangway from ship's side. LPG Tankers have priority for berthing.
Max LOA/DWT/Draft/Air Draft:
Max LOA/DWT/Draft/Air Draft:
300 m / 37,000 DWT / 12 m / 29.30 m
Weather :
NE winds, safe place
Two wessels DWT 30.000 and 3.000 can berth similtaneously.
High of the jetty:
2.70 m (low water), 3,30 m. (high water)
Sea Density :
1016 - 1018
Anchorage Area :
40 26.4°N / 29 07.12 E
40 28 00 N / 29 03 00 E (For explosives)
Fertilizers:
By conveyors & grabs
Manifold Dimension: 10" ASA 150
Loading Arms:
2 pcs. Nominal Diameter of Loading Arm: 10 inches.
Working Temperature:
- 33 Celcius
Vessel Discharging Rate:
450 t/h
Max. Working Pressure:
7 Bars
Min. High of Loading Arm:
3.70 m (low water), 4.30 m (high water)
Max. High of Loading Arm:
17.30 m (low water), 17.90 m (high water)
Distance from upper level of the jetty to the sea bottom:
12 m.
Arms Connection Period:
Max. 1 hr
STOCKING:
Ammonium Nitrate 150.000 t, Ammoniac 2 x 20.000 t.
F.W:
Through suppliers by barge
Bunker:
Through suppliers by barge
Handling:
By vessels' own gear, only liquids are handling through shore lines.
Storage:
Open and Covered Warehouse areas
Working Hours :
08:00 - 16:00, 16:00 - 24:00, 00:00 - 08:00
PSFO:
Mr. Bahri KAYA Phn +90.224.519 00 70, +90.262.754 50 55 bkaya@yilport.com.tr
Statement No.:
1016137 (0916137)
Operated by:
Roda Liman Depolama ve Lojistik Hizmetleri A.S. www.rodaport.com (A joint ventıre of Dora Yatirim, Bursa Cement, Bursa Beton, Ares Cement, Çemtas Steel Machinery)
Adress:
Gemsaz mevkii, Ata mah. 146. sk. no.5 16600 Gemlik - BURSA
Phone/Fax:
+90.224.519 00 30, 519 08 63-70
Fax:
+90.224.519 00 31, 519 08 62, 519 08 69
P.I.C.:
Mr. Ali AÇIL aliacil@rodaport.com
Statement No.:
1016137 (0916137)
E-Mail:
info@rodaport.com
Location:
40º 24' 40” N – 29º 05' 00” E
Main Office Phone:
+90.224.271 12 00
Main Office Fax:
+90.224.271 18 86
Tides:
Depending on the winds, the rise of tide is 0.35 - 0.40 m.
Prevailing Winds:
N & NE force 3-5 Beaufort
Accomodation:
Naturally Protected
Pilotage:
Compulsory. Pilot service carry out by GEMPORT. Three tug boats (2x1731HP) (1x2000 HP) and one pilot boat are available. 24 hrs and 4 hrs notices should be given through agent.
Pilot Radio Frequency Information :
VHF channel 16, 71 (calling)
Total Port Area:
97,000 sqm
Working Hours (Administrative):
08.30 and 17.30 hours a week and 09.00-12.00 hours on Saturdays
Working Hours (Operations):
24 hrs/7 days
Main Activities
General Cargoes, Bulk Cargoes, Containers.

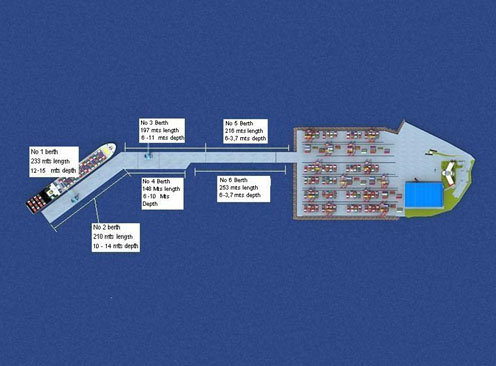

Total lenght of the pier
1,257 m , Total lenght of the berths 636 m, Width of the pier 35-40 m.
Equipments :
3 x 100 t mobile cranes, 1 x 20 t mobile crane, 3 x 45 t stacker, 2 x 40 t RTG, 1 x 13 t forklift, 1 x 5 t forklift, 1 x 3 t forklift
Covered Storage:
3,000 sqm
Semi-covered Storage:
1,000 sqm
Tent Warehouse:
2,500 sqm
Terminal Area:
83,000 sqm
Total Custom Bonded Area:
103,600 sqm
Container Stowage Capacity:
55,000 TEU
CFS Area:
In the CFS area with an area of 3500 square meters, stuffing and unstuffing services are offered to all export and import containers. Services of stuffing, unstuffing, determination, inspection and sampling processes are offered by putting 200 containers on the ground without any problem.
Anchorage Area :
40 26 40 N - 29 07 12 E
PFSO:
Mr. Y. Ahmet Yavuz (Deputy G. Mng. & PFSO) Cell Phn +90. 533.450 23 68 y.ahmetyavuz@rodaport.com, Mr. E. Serkan Dagdelen (Opr. Chf. & PFSO) s.dagdelen@rodaport.com Cell Phn +90.532.586 61 25 , Mr. Can Sinan MERMUT (Warehose Chf. & PFSO) sinanmermurt@rodaport.com, cansinanmermut@hotmail.com Cell Phn +90.546.558 14 13, Mr. Kemal SIVAS (Chf. of Internal Services & PFSO) kemalsivas@rodaport.com
ISPS Statement no.:
916187
Operated by:
BP Petrolleri A.S. www.bp.com.tr
Adress:
Küçükçukur Mevkii 16600 Gemlik/BURSA
Location:
40 25' 12" N - 29 07' 12' E
CARGO HANDLED:
Gas Oil, Diesel Oil , Base Oil, MEG, Fuel Oil
P.I.C.:
Mr. Ali AÇIL aliacil@rodaport.com
E-Mail:
aydin.ozdemir@ec1.bp.com ; berkanozkan@ec.1.bp.com (Cell. Phn. +90.533.550 11 63)
Anchorage :
40 28 N - 29.03 E
PFSO:
Mr. Kenan KOCOGLU Phn +90.224.524 83 00 Fax +90.224.524 83 05 kenan.kocoglu@ec.1.bp.com , Mr. Berkan ÖZKAN Phn +90.224.524 83 00 ext. no. 700 Cell Phn +90.533.550 11 63 berkan.ozkan@ec1.bp.com
ISPS Statement No.:
816062
Location :
7 km from Gemlik
Repatriation :
Available, İst. Airport 154 km by ferry
Pilot / Tug :
By Gemport Pilot BTW 2.000 - 5.000 GT, 1 Tug / over 5.000 GT, 2 Tugs
Weather :
NE winds, safe place
Connections :
To Bursa - İstanbul Highway

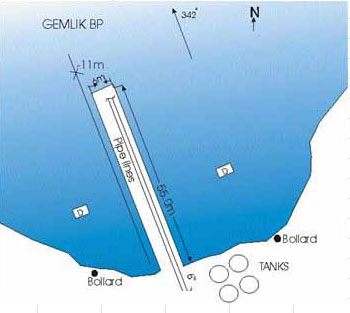

BERTH:
LOA
DRAFT
BERTHING
55 m
11 m
Stern Fast (during daylight only)
CARGO
CONC.
AVRG.
RATE
-SHORE TANKS
Oils
4x8"
120-300mt/h
44,131cbm
2x6"
42mt/h
1x4"
Services avilables:
FW, Shipchandler, Hospital
Add. Infos.:
13 seperate tanks with a total capacity of 35,000 mts 250 m. from shore tank to Manifold.

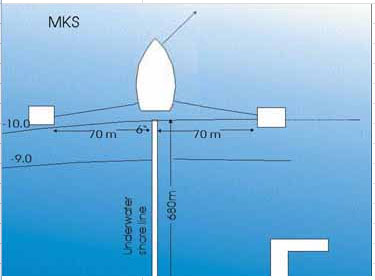

Operated by:
MKS Marmara Entegre Kimya San. A.S. www.mksmarmara.com
Adress:
Çömlektepe Mevkii, POBox 12, Gemlik, Bursa
Location:
40 24' 40"N - 29 04' 50"E, 10 km to Gemlik
CARGO HANDLED:
Methanol, Formaldehyde, Formurea, Urea Formaldehyde Resins, Sodium Formate, Melamine, Pentaerythritol.
PHONE:
+90.224.519 03 00 / 4 lines
E-MAIL:
mks.gemlik@mksmarmara.com
Anchorage :
40 28 N - 29.03 E
mks.gemlik@mksmarmara.com
MAIN OFFICE:
MKS Marmara Entegre Kimya Sanayi A.Ş.
Berth:
Stern Fast to 2 buoys (both anchors used), Draft 10 m
Note:
680 m. Underwater pipe line,
Anchorage :
40 28 00 N / 29 03 00 E (for tankers)
Pilot & Tugging :
Provided by Gemport, 2.000 - 5.000 GT -1 Tug , over 5.000 - 2 Tugs. VHF Channels 16 - 14 - 71
Weather :
NE winds safe place
CONN. :
To Bursa - İstanbul
Restr :
Berthing under daylight only.
Add.Infos:
m flexible hoses is joined to the fore end of the underwater shore line. If vessel has not permanent stern line, vessels to provide the flexible hoses long enough from ships manifolt to stern and plus bout 10 m. long hoses for the distance from stern to shore connection.
Methanol Tanks Capacity: 9,600 mts
PFSO:
Mr.Hamza AYGUN Phn +90.224.519 03 00 Fax +90.224.519 03 04 Cell Phn +90.532.547 26 90 impex@mksmarmara.com
